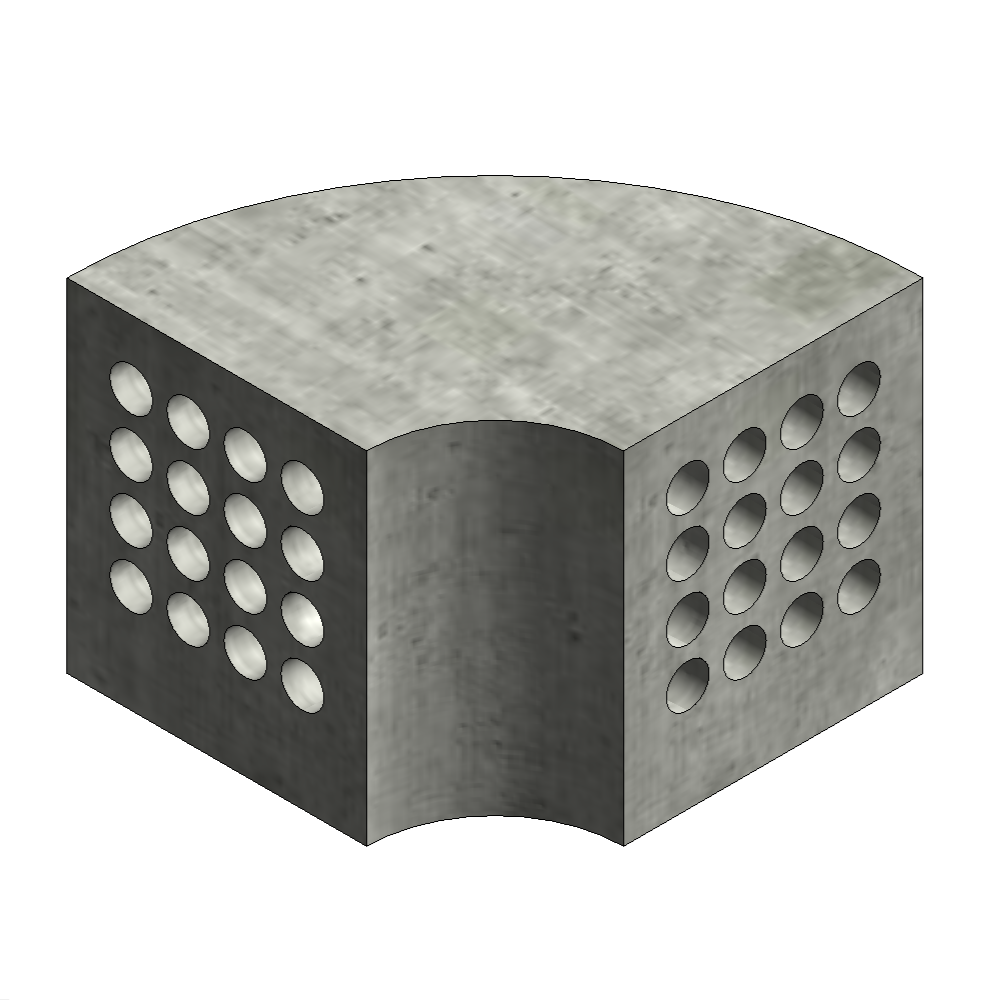

• Duct Bank Bend with 90 degrees Bend Angle 4x4 3D View | Revit Parametric Family Free Download

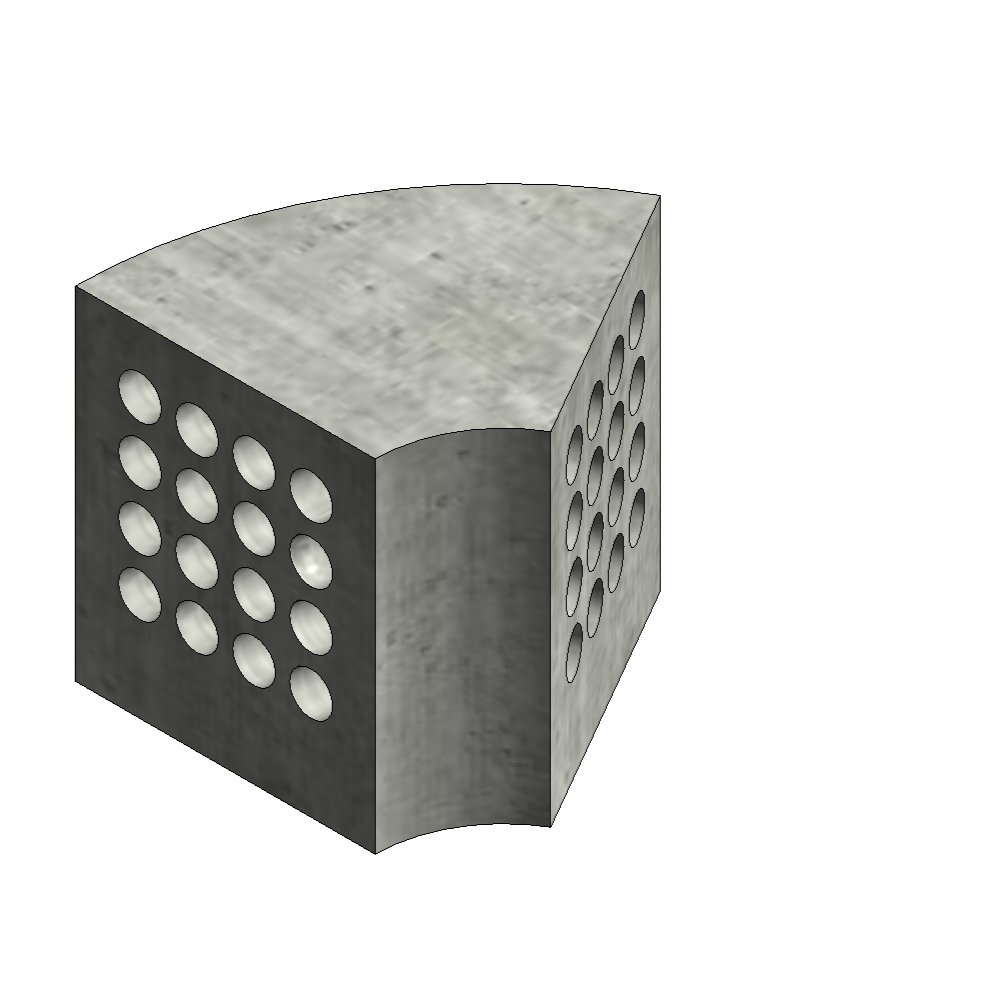

  • Duct Bank Bend with 60 degrees Bend Angle 4x4 3D View | Revit Parametric Family Free Download

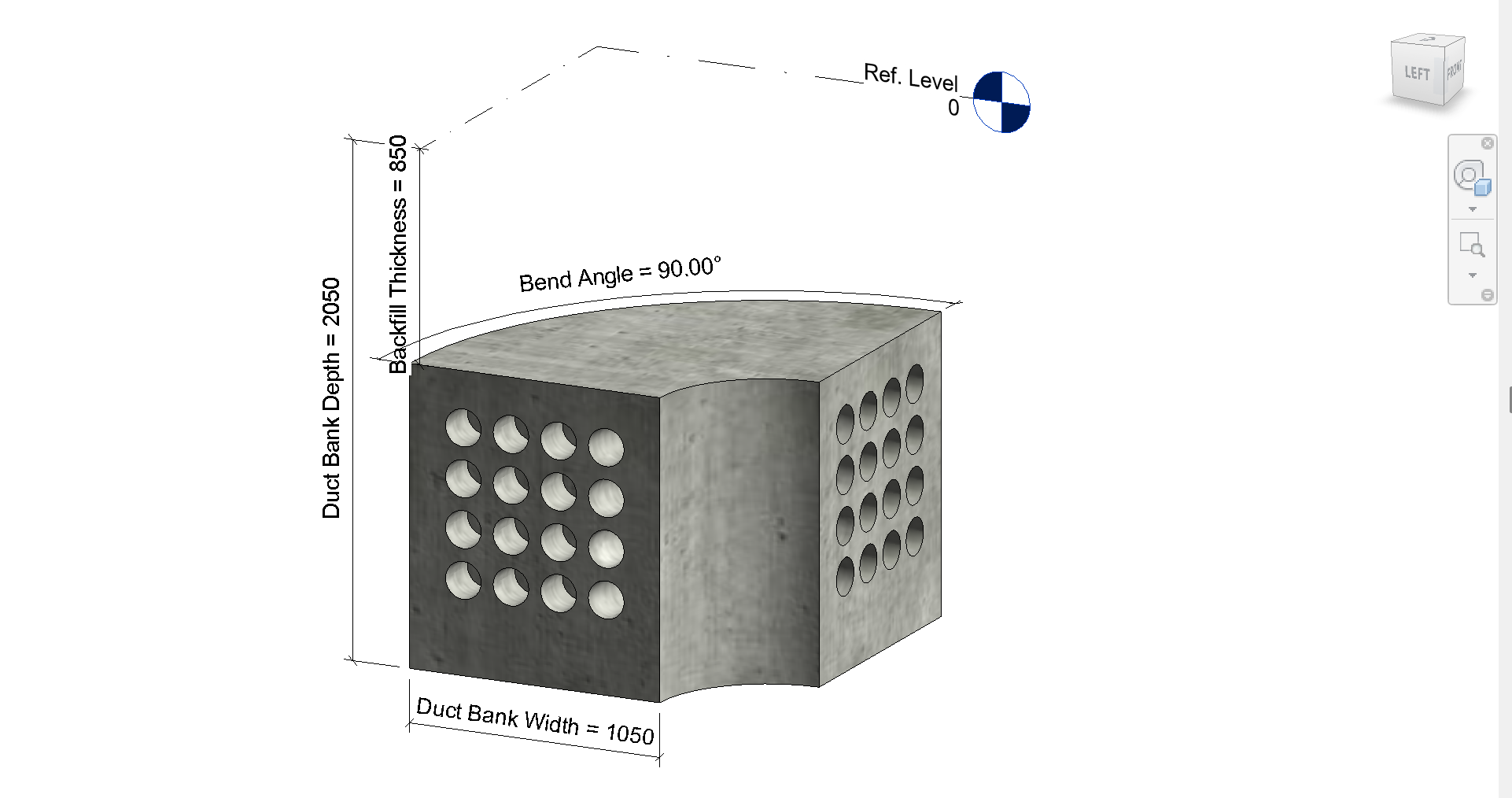

  • Duct Bank Bend with 90 degrees Bend Angle 4x4 3D View With Dimensions and Parameters | Revit Parametric Family Free Download

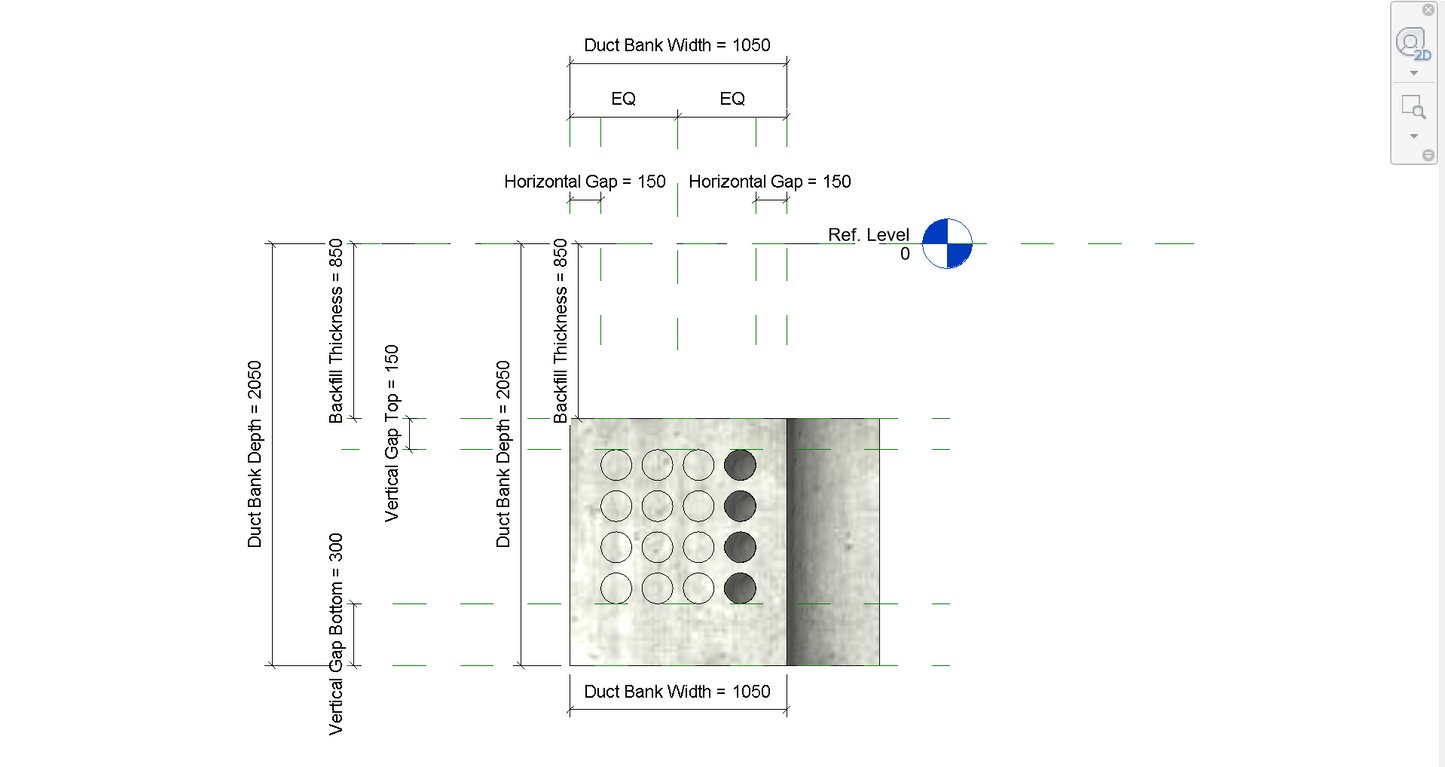

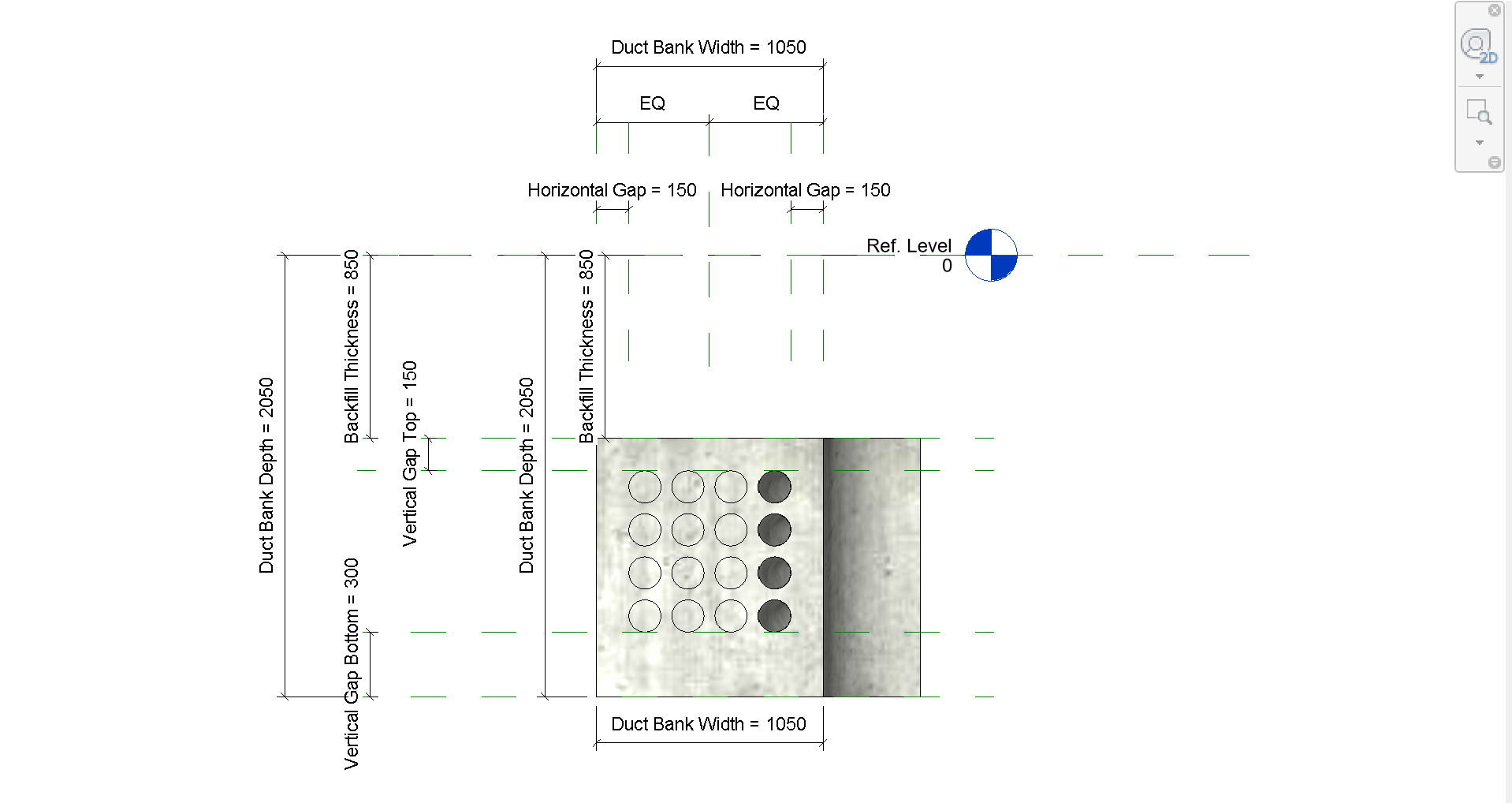

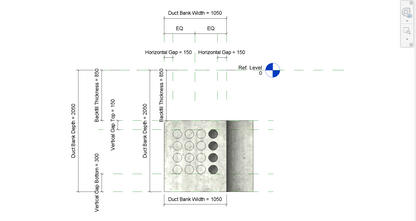

  • Duct Bank Bend with 90 degrees Bend Angle 4x4 Left View with Dimensions and Parameters | Revit Parametric Family Free Download
  • Duct Bank Bend with 90 degrees Bend Angle 4x4 Parametric Type Properties | Revit Family Free Download

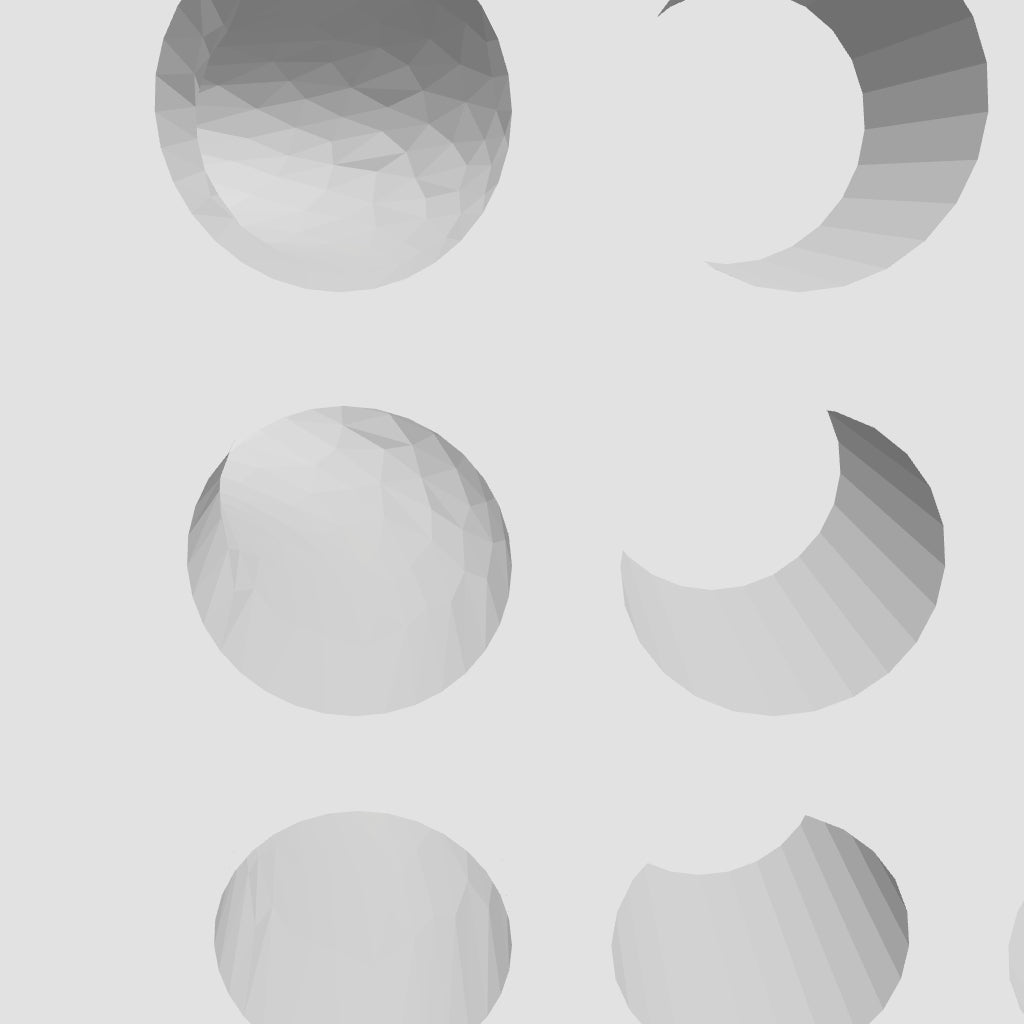

  • Duct Bank Bend with 90 degrees Bend Angle 4x4 Shopify Model Viewer | Revit Parametric Family Free Download
1 6

Biwico Studios

Duct Bank_Bend | Free 3D Models

Duct Bank_Bend | Free 3D Models

$0.00 SGD
$0.00 SGD $0.00 SGD
Sale Sold out
File Type
Login to Download

Description
Duct Bank_Bend

Parametric Revit Family:

  • Software: Revit
  • File Version: 2020
  • Software Compatibility: Revit 2020, 2021, 2022, 2023, 2024, 2025, 2026+
  • File Type: .rfa

Key Parametric Features:

  • Custom Conduit Counts: Create your own Family Types for any configuration (e.g. 2x3, 3x4, 5x5..) by using the 'No. of Conduit Horizontal' and 'No. of Conduit Vertical' parameters.
  • Adjustable Geometry: Control the minimum bend radius through the 'Min. Bend Multiplier' parameter and easily adjust the 'Bend Angle'.
  • Placement: Non-hosted for flexible site modelling.
